XT250 Waste Oil Heater

XT250 Waste Oil Heater

$10,959.91

The XT-250 heater has a powerful heat output up to 250,000 BTUH and 8,500 sq. ft., burning 100% used synthetic oil and other fluids. It features a 47″ x 46″ x 36″ cabinet, a 4,600 CFM axial fan, and an 8″ Class A chimney pipe. It operates on a 120 V-60Hz 20 Amp power supply and includes a 2 CFM compressed air system. It boasts an easy-access hinged chamber door and a large side-access clean-out panel.

9998 in stock

SKU: 81012505 Category:

Description

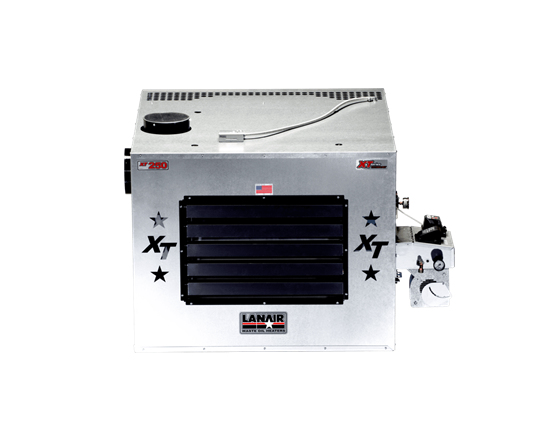

XT-250

Need a Heater That Can Fit Into Tight Quarters Without Cutting Any Corners?

Specifications:

Heat Range (BTUH)* Up to 250,000
Fuel Input (GPH) 1.8
Fuel Type† Used crankcase oil up to 50 wt (conventional or synthetic), used automatic transmission fluid, #1 and #2 fuel oil (diesel)
Heating Area (sq. ft.)** Up to 8,500
Power Supply (AC)*** 120 V-60Hz 20 Amps
Cabinet Dimensions (L x W x H) 47″ x 46″ x 36″
Hanging Weight (lbs.) 670
Axial Fan (CFM) 4,600
Chimney Pipe**** 8″ Class A
Compressed Air***** 2 CFM – 15-18 PSI
Combustion Chamber 10 Gauge CRS
Ductable Option No
Chimney Location Top and Side

Additional information

Weight 670.0000 lbs
