Description

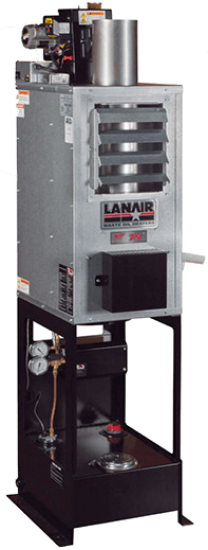

Need a Heater That Can Fit Into Tight Quarters Without Cutting Any Corners?
- 75,000 BTU’s heat up to 1,700 sq. ft.
- Burns #2 fuel oil (diesel), used crankcase oil (conventional or synthetic), and used ATF
- Small footprint; only 21”W X 26”L floor mounted footprint
- Onboard air compressor
- Metering pump
- Draft gauge
- Cleanable in-tank strainer
- Preassembled for easy installation
- Roof and wall includes 6” chimney for 14-16 eves
SPECIFICATIONS
| Heat Range (BTUH)* | Up to 75,000 |
| Fuel Input (GPH) | 0.54 |
| Fuel Type† | Burns #2 fuel oil (diesel), used crankcase oil (conventional or synthetic), and used ATF |
| Heating Area (sq. ft.)** | Up to 1,700 |
| Power Supply (AC)*** | 115 V-60Hz 8 Amps |
| Cabinet Dimensions (L x W x H) | 26″ x 21″ x 75″ |
| Hanging Weight (lbs.) | 210 |
| Axial Fan (CFM) | 500 |
| Chimney Pipe**** | 6″ Class A |
| Ductable Option | No |
| Chimney Location | Top |
