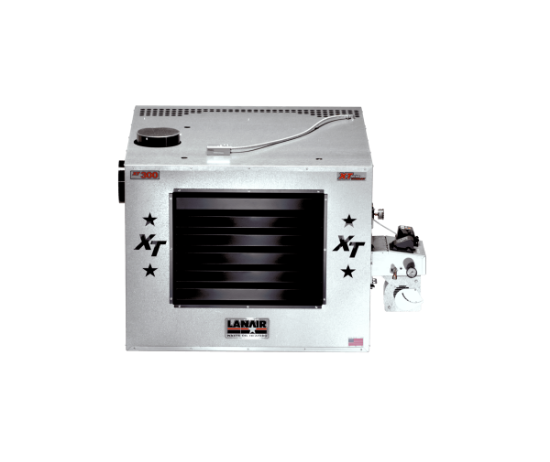

XT300 Waste Oil Heater

$11,675.86

With a powerful heat range up to 300,000 BTUH, the XT300 can heat areas up to 10,000 sq. ft. and burns 100% used synthetic oil, along with other used fluids and diesel. This unit features a 47″ x 46″ x 36″ cabinet, a 4,600 CFM axial fan, and an 8″ Class A chimney pipe. It operates on a 120 V-60Hz 20 Amp and includes a 2 CFM compressed air system. Enhanced with an easy-to-remove burner, a non-continuous spark transformer, an hour meter, and a prime switch.

9997 in stock

SKU: 81013005 Category:

Description

XT-300

Need a Heater That Can Fit Into Tight Quarters Without Cutting Any Corners?

Specifications:

Heat Range (BTUH)* Up to 300,000
Fuel Input (GPH) 2.1
Fuel Type† Used crankcase oil up to 50 wt (conventional or synthetic), used automatic transmission fluid, #1 and #2 fuel oil (diesel)
Heating Area (sq. ft.)** Up to 10,000
Power Supply (AC)*** 120 V-60Hz 20 Amps
Cabinet Dimensions (L x W x H) 47″ x 46″ x 36″
Hanging Weight (lbs.) 670
Axial Fan (CFM) 4,600
Chimney Pipe**** 8″ Class A
Compressed Air***** 2 CFM – 15-18 PSI
Combustion Chamber 10 Gauge CRS
Ductable Option Yes
Chimney Location Top and Side

Additional information

Weight 670.0000 lbs
